Description
| Brand | Unbrand |
|---|---|
| Manufacturer Part Number | 1995082 |
| Vintage Part | Yes |
| Year | Make | Model |
|---|---|---|
| 1947 – 1954 | Chevrolet | Truck |
| 1947 – 1954 | GMC | Truck |

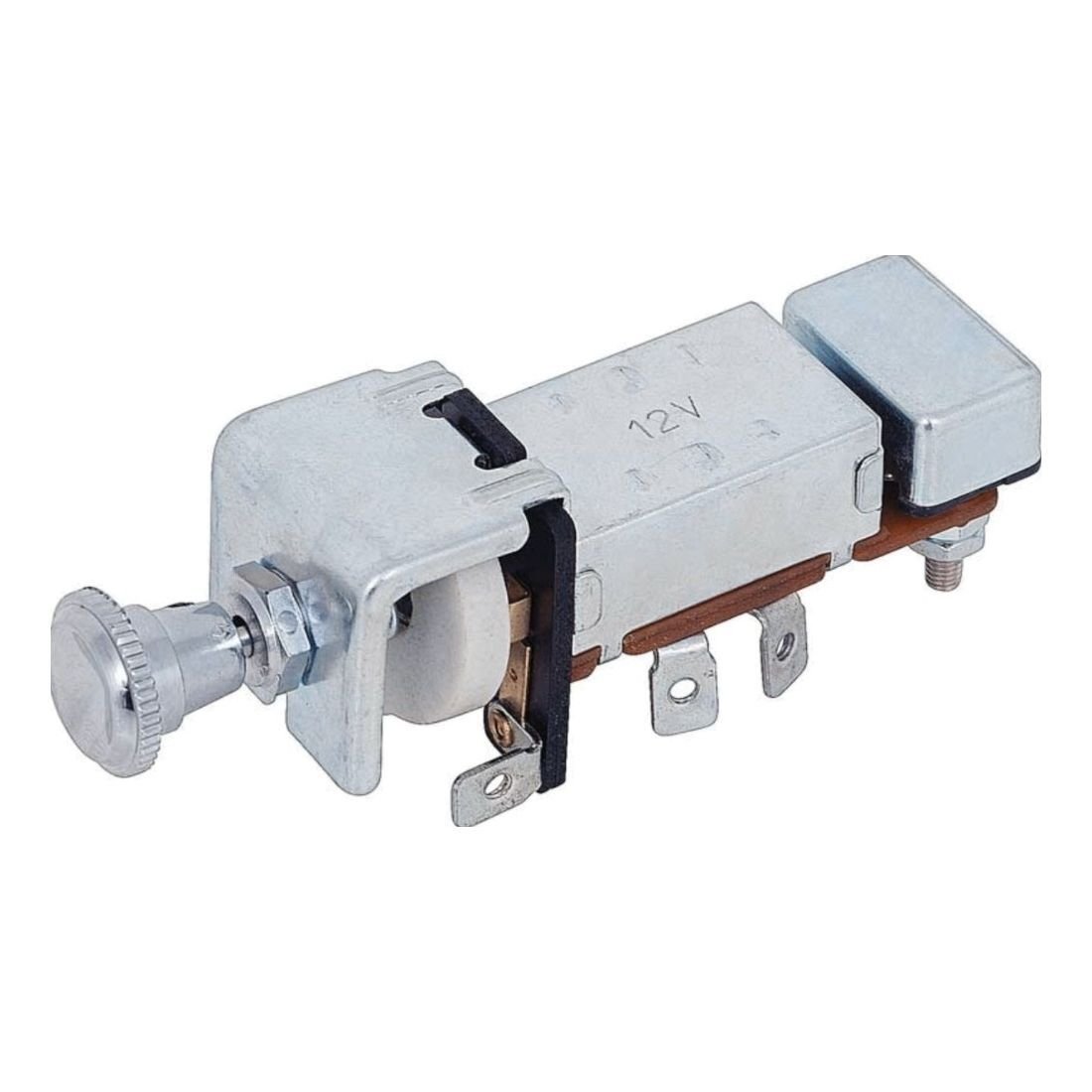

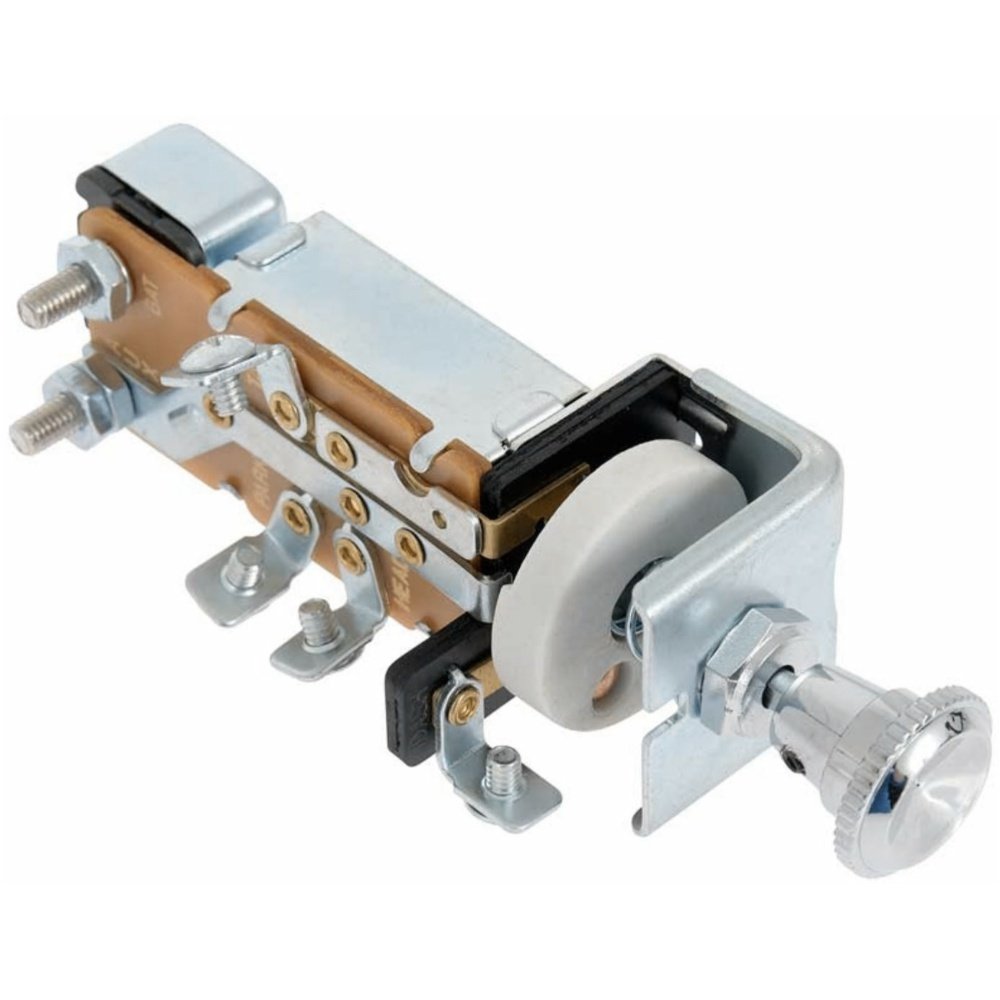

OER 12 Volt Universal Headlight Switch 1940-1955 Buick Chevy Oldsmobile and Pontiac Models
Universal fit, service replacement headlight switch and knob designed for fitment on a variety of GM models with 12 volt system. A convenient way to update your headlight switch when upgrading and converting your 6 volt system to 12 volt system. Each switch includes the shaft and knob.
Product Specifications
Universal Push Pull for Headlamp
5 Screw Terminals
3 Positions
Rating: 20 Amps @ 12 Volts DC With 11 ohms of Resistance
Push Pull Switch with Circuit Breaker
Rheostat – Turn to Dim Dashboard Light
Three Position Switch = OFF-ON-ON
Position 1 = Off
Position 2 = Tail, Park, and Dash
Position 3 = Tail, Dash, and Headlights
5 Screw Terminals (2 Stud Terminals)
Stem 3/8″ Long 3/8″ Diameter
Replaces GM 1994016, 1994022, 1995031, 1995035, 1995041, 1995045, 1995048, 1995052, D-1537
Vehicle Appplications
1949-53 Buick
1948-50 Cadillac
1940-55 Chevrolet
1940-55 GMC
1942-54 Pontia
c
